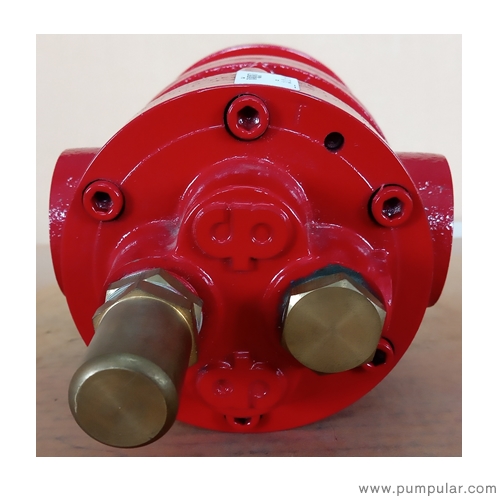

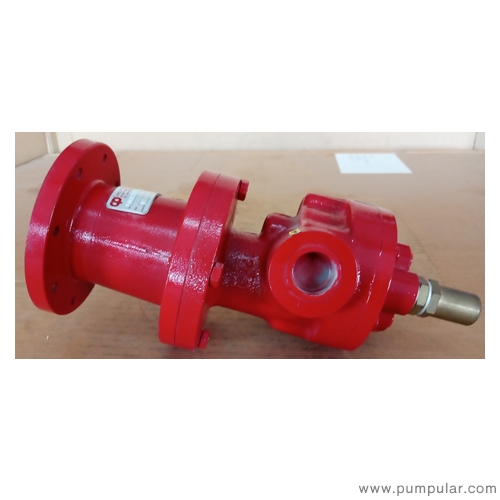

Cucchi FG025 gear pump no motor

Cucchi FG025 gear pump no motor

The gears pumps set F-FT/FM are salfpriming and suitable to tran- sfer and to push liquids without solid suspensions for low/average viscosity up to max temperature of 200”C and pressure of 10 bar.

660.00$

Add to quote

Feature

— The gears pumps set F-FT/FM are salfpriming and suitable to tran- sfer and to push liquids without solid suspensions for low/average viscosity up to max temperature of 200”C and pressure of 10 bar.
— The standard execution is suitable for max temperafure of 90”C. 0n request, the pump can be equipped with internal valve by pass.

APPLICATIONS

— To transfer and to spray fuel oil, or heavy oil to Turners with pneumatic spraing.
— As auxiliary pump to push fuel oil or heavy oil to the pump of the
Turners with mechanical spraing.
— To load or to unload fliathermic oil to/from industrial boilers. To transfer concrete additives in metering units.
— To transfer oil in industrial dry-washing machines.
— To lubricate industrial compressors (oil + ammonia or oil + freon). — To lubricate big gear unit.
— To lubricate big electric transformers.
— To transfer oiîs, fieavy oil, di8sel oil in metefing systems wİtb
tank, pump, flow meter, gun.
— To metering colours in metering units in the textile / car industry. — To transfer water emulsion.
— To transfer liquids in the food indusłry.

Product Specification

TYPE DEBIT kW R.P.M.

min’

Max Pression
FG025 1500 0,75 1400 10

×
