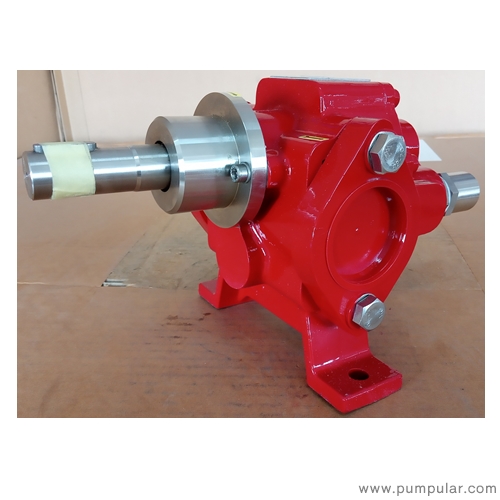

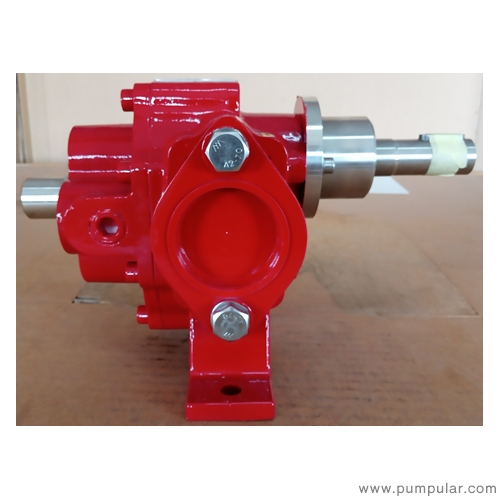

Cucchi MX100 gear pump

Cucchi MX100 gear pump

This range constuction is conformed to the standards CE 89/392, 91/368,93/44/68, 98/37 – UNI EN ISO 14847, 809 – API 676 – on request, NACE MR 0175 and ATEX.

4,330.00$

Add to quote

Feature

– This range constuction is conformed to the standards CE 89/392, 91/368,93/44/68, 98/37 – UNI EN ISO 14847, 809 – API 676 – on request, NACE MR 0175 and ATEX.
– The quality system operated by Pompe Cucchi Srl is according to the standards UNI EN ISO 9001:2000 (Certificate n.SQU132AQ252).
– The MX series is used in various sectors in liquid transfer with viscosity from 1 to 100.000 cps.A7

APPLICATIONS

Chemical plants: transfer and dosage of every type of liquid completely free of solid suspension.
Food plants: transfer of liquid in the first transformation processes – pumping of chocolate (for this purpose a
special series with pre-heating chamber has been designed with an extremely wide surface which favours the thermal exchange between the water at 55°C and the hydraulic chamber) – fats, marmalade etc.
Agricultural plants: pumping of molasses and other liquid products for animal food.
Industrial plants : pumping of glue, resins, bases, acids, isocyanate, polyhydric alcohols etc.

Product Specification

TECHNICAL CHARACTERISTICS PUMPS RANGE MX

Type Capacity
(L/min.)
Connections R.P.M. kW Absorbed Weight
(Kg.)
5 bar 10 bar
MX 100 100 G 2” 1.450 1.90 2.70 15.0

×
