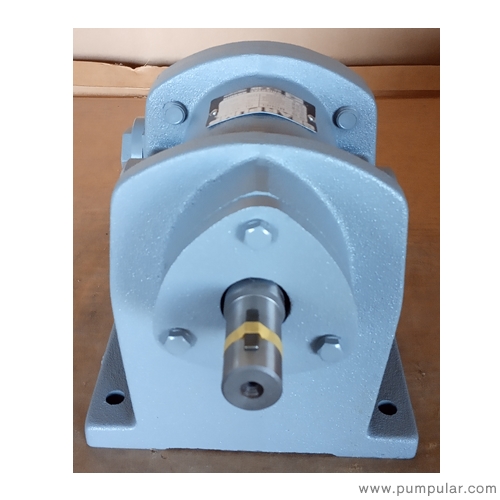

Gear pump KOSHIN GL-40-5 11/2″

Gear pump KOSHIN GL-40-5 11/2″.“GEAR PUMP” GL Series for Low Viscosity Oil.

960.00$

Add to quote

“GEAR PUMP” GL Series for Low Viscosity Oil

Feature

• Safety by-pass function protects pump.

Applications

• Kerosene
• Machine oil
• Heavy oil
• Light oil

Product Specifications

Model   GL-40-5
PUMP Connection Dia  40 mm (1½”)
Power    2.2 kW
Poles 6 P
Max. Pressure 0.5 MPa
(5 kgf/cm 2 )
Delivery (1720 rpm)
Volume
60 Hz
Delivery (1720 rpm)
123 L/min
(32 USG/min)
50 Hz (1450 rpm) 100 L/min
(26 USG/min)
Coupling JIS
Pump Shaft Dia   22 mm
Gross Weight     23 kg (50.7 lbs)
Dimensions L×W×X (mm)    318 × 258 × 220
Packing Unit 1

×
