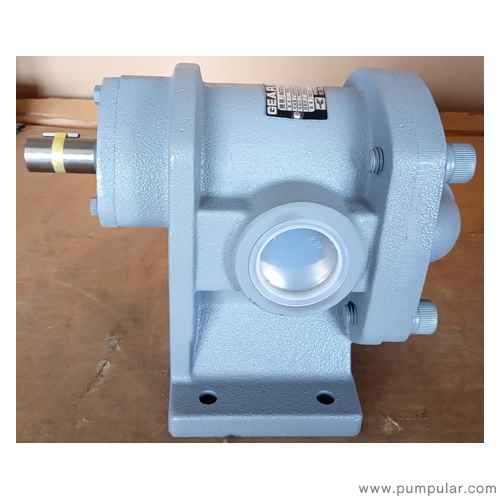

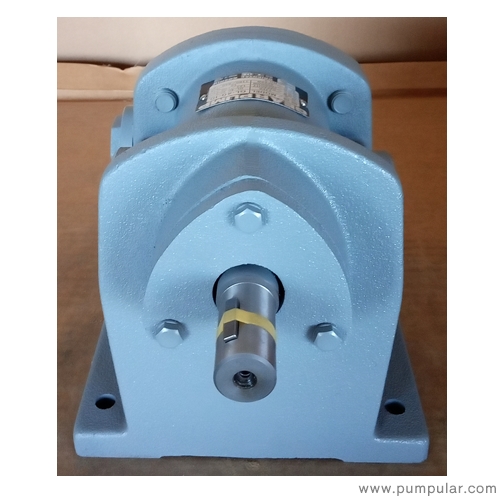

Gear pump KOSHIN GL-40-10 11/2″

Gear pump KOSHIN GL-40-10 11/2″. “GEAR PUMP” GL Series for Low Viscosity Oil.

1,025.00$

Add to quote

“GEAR PUMP” GL Series for Low Viscosity Oil

Feature

• Safety by-pass function protects pump.

Applications

• Kerosene
• Machine oil
• Heavy oil
• Light oil

Product Specifications

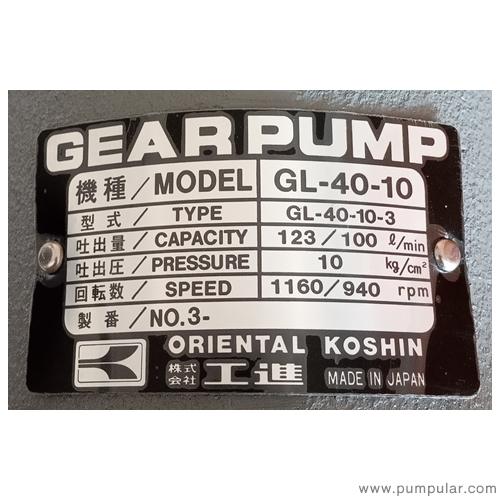

Model   GL-40-10
PUMP Connection Dia  40 mm (1½”)
Power    5.5 kW
Poles 6 P
Max. Pressure 1 MPa
(10 kgf/cm 2 )
Delivery (1720 rpm)
Volume
60 Hz
Delivery (1720 rpm)
123 L/min
(32 USG/min)
50 Hz (1450 rpm) 100 L/min
(26 USG/min)
Coupling JIS
Pump Shaft Dia   22 mm
Gross Weight     23 kg (50.7 lbs)
Dimensions L×W×X (mm)    318 × 258 × 220
Packing Unit 1

×
