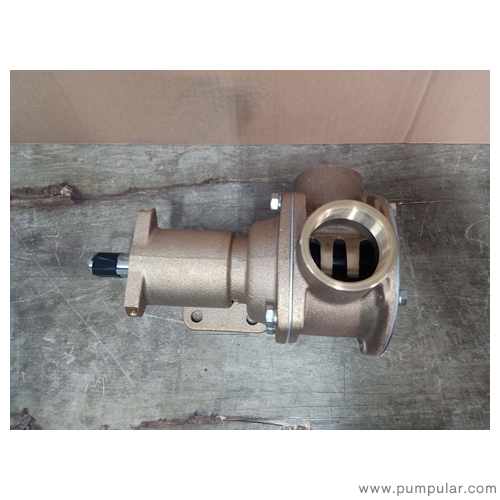

Revolvex pump KOSHIN MF-25S
Revolvex pump KOSHIN MF-25S.
Flexible Rubber Impeller for Seawater.
Complete structure is manufactured from gunmetal, no rusting.
315.00$
REVOLVEX PUMPS
Flexible Rubber Impeller for Seawater
• Complete structure is manufactured from gunmetal, no rusting.
• START/STOP is easily controlled by pressing one switch. (MFC type)
• MFC type is fitted with electromagnetic clutch.
• Easy to replace rubber impeller.
• Self-priming.
For Seaweed Model
Pumping Up Seaweed at Once,And Transferring it without Damage
• Adopted special impeller to avoid damage by seaweed.
• Special sleeve to transfer seaweed smoothly.
Applications
• Transfer seaweed from small boat to mother ship
• Built in for the machinery for seaweed
• Discharge of bilge water, emergency water discharge
• Washing a deck or hold
Product Specifications
| Model | MF-25S |
| Connection Dia | 25 mm (1″) |
| Connection Thread | Inner Pipe Thread |
| Material | Bronze Castings (Gunmetal) |
| Total Head | 28 m (92 ft) |
| Delivery Volume | 115 L/min (30 USG/min) |
| Output | 1.5 kw (2.0 PS) / 1750 rpm |
| Number of Blades | 9 |
| Driving Method | Belt Drive |
| Revolution Direction | Anti-clockwise (Watching from Driving Shaft) |
| Revolution | 500 – 2300 rpm |
| Shaft Dia | 20 mm (¾”) |
| Standard Accessory | Parallel Key |
| Gross Weight | 4.8 kg (10 lbs) |
| Dimensions L×W×H (mm) | 240 × 142 × 183 |
| Packing Unit | 1 |
