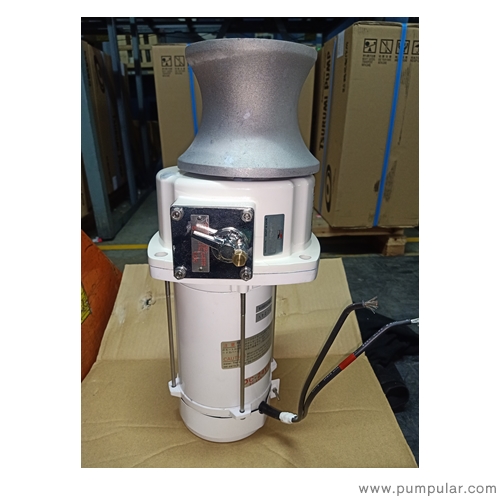

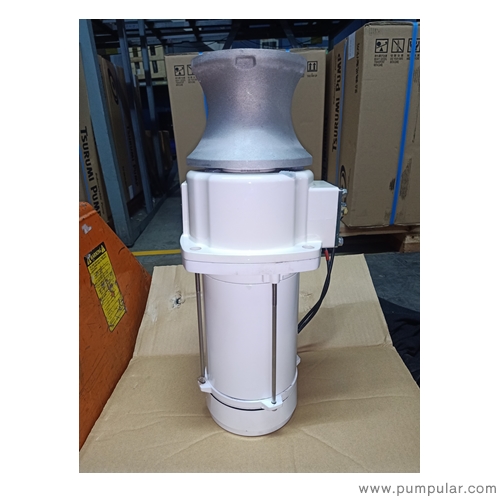

Battery winches KOSHIN REL-7524
Battery winches KOSHIN REL-7524. High Speed & High Load Rolling Up Max. Winch Up Power 900 kg.
High Speed & High Load Rolling Up Max. Winch Up Power 900 kg
Feature
• Use magnet motor. Simple wiring and easy to switch direction between clockwise to
counterclockwise.
• Approx. 25 % more power from usual 400 W type by high speed and high load rolling up.
• 2 stage switchable winch capacity (REL, RES).
Switch to 900 kg / 50 rpm and 450 kg / 100 rpm by gearshift.
• Motor case, Roller, etc are made of aluminum alloy.
Light, compact, sea water proof and no rust damage to FRP boat.
• Polyurethane coat protects corrosion perfectly.
| Model | REL-7524 | |
| Voltage | DC 24 V | |
| Rated Current | 43 A | |
| Motor Output | 750 W | |
| Rating | 1 h / 43 A | |
| Roller Revolution | 50 rpm (Low), 100 rpm (High) | |
| Manual Capacity |
Max. | 900 kg (Low), 450 kg (High), (150 A) |
| Rating | 220 kg (Low), 110 kg (High), (43 A) | |
| Winch Speed | 17 m/min (55 ft/min) (Low), 33 m/min (108 ft/min) (High) | |
| Standard Accessories (RES, REN Type Only) |
1 Cable Gland For Ship, 1 Waterproofing Plate, 1 Vertical Type Main Body Packing, 2 Crimping Terminals | |
| Net Weight | 19.5 kg (43 lbs) | |
| Gross Weight | 24 kg (53 lbs) | |
| Dimensions L×W×H (mm) | 510 × 270 × 255 | |
| Packing Unit | 1 | |
